OP60A Series
Outdoor LED Poster Display
- 4 wheels at the bottom of the stand
- 640*1920mm display size
- Rear service design
- Borderless design
- Smart cloud management
- IP65 high waterproof level
- Multi-screen seamless splicing
- Airfoil fan design for fast heat dissipation
Highlights
Size
640*1920mm standard size for different applications.
Movable Design
Four wheels at the bottom for easy movable, fast chagen installation location.
IP65 Waterproof
High IP65 waterproof protection level for outdoor applications
Airfoil fan
The cabients has airfoil fan design for Fast heat dissipation,
Borderless Design
Borderless design for multi-screen seamless splicing.
Smart Control
Support cloud management with phone, wifi, wireless, 4G, etc
Products
P2.5
- 320*160mm LED module
- 128×64 dot/module
- 256×768 dot/poster
P3.076
- 320*160mm LED module
- 104×52 dot/module
- 208×624 dot/poster
P4
- 320*160mm LED module
- 80×40 dot/module
- 160×480 dot/cabinet
P5
- 320*160mm LED module
- 64×32 dot/module
- 128×384 dot/cabinet
Customized New LED Display Solutions for You

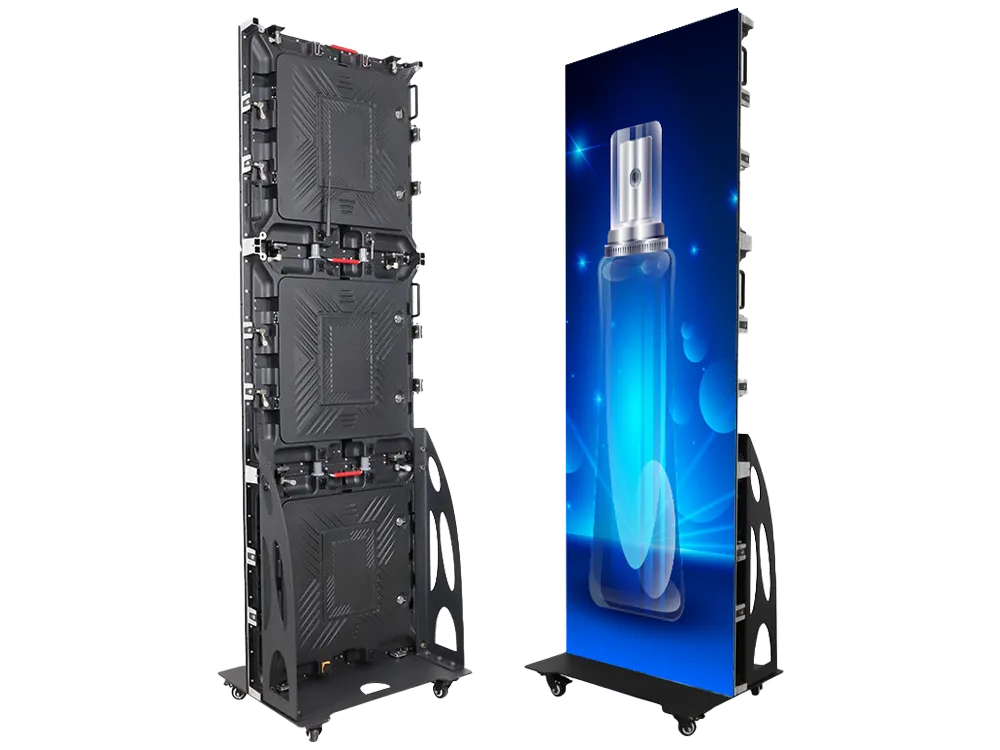

Outdoor LED Poster Screen
The OP60A Series is a poster LED screen designed for outdoor installation with IP65 waterproofing and featuring a die-cast aluminum cabinet for easy transport and installation. It features plug-and-play functionality, a movable design, and smart cloud control.
640*1920mm
The OP60A Series outdoor poster LED display has a simple structure and is easy to operate. It is used for advertising, information release, and product display.
Borderless Design
Three 640*640mm outdoor rental screens can be quickly assembled into an EA1920OP1 LED poster screen.
Rear Service Design
The back cover of the poster LED cabinet can be opened to facilitate maintenance operations. The unique heat dissipation and waterproof structure ensures that the equipment continues to operate efficiently.
Stable Base Bracket
This outdoor poster LED screen features a mobile base with 4 swivel wheels, enabling smooth 360° rotation and effortless movement in any direction. The freely adjustable design ensures easy repositioning, making it ideal for dynamic advertising, retail displays, and event setups.
Multi-screen Splicing
This poster LED screen supports seamless large-screen displays by combining multiple units, creating a stunning video wall effect. It can operate as a unified big screen or function independently, offering flexible content management for advertising, events, and retail environments.
Perfect LED Cabinet Design
Quality products come from all the details of LED cabinets. Back cover rotary switch, quick lock, hidden wire trough, solid bracket.
Smart Cloud Management
This poster LED screen enables centralized remote management of multiple displays through a cloud platform, allowing users to edit content, schedule playback windows, and control displays via WiFi, 4G/5G, RJ45, or USB from anywhere.
Specification
| Model | OP60A-P1.25 | OP60A-P1.53 | OP60A-P1.86 | OP60A-P2 | OP60A-P2.5 |
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Weight (KG) | 40 | 40 | 40 | 40 | 40 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
Applications
